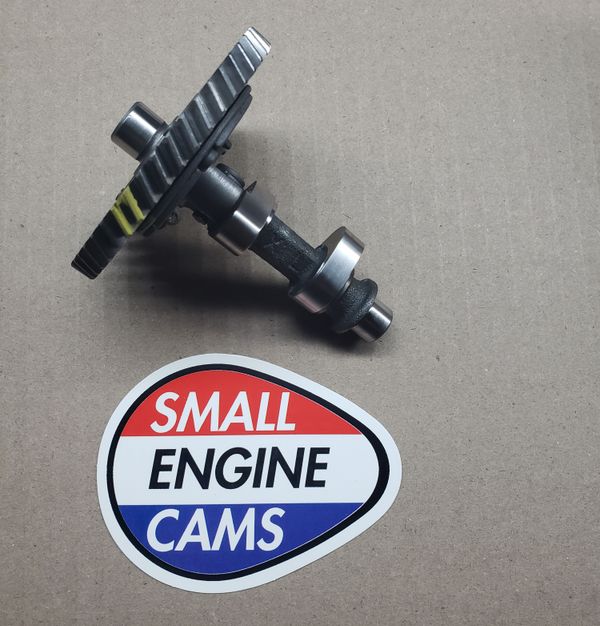

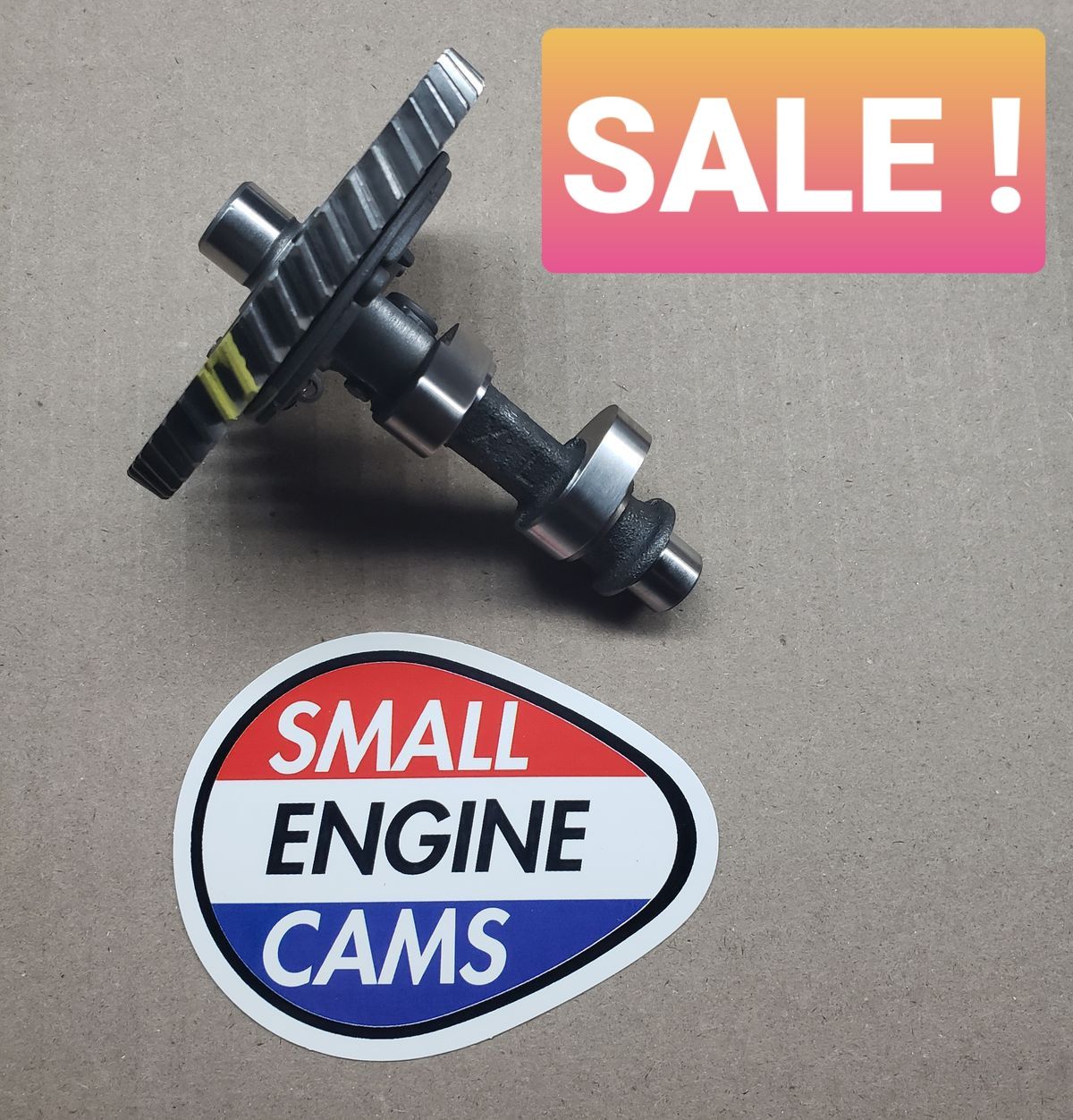

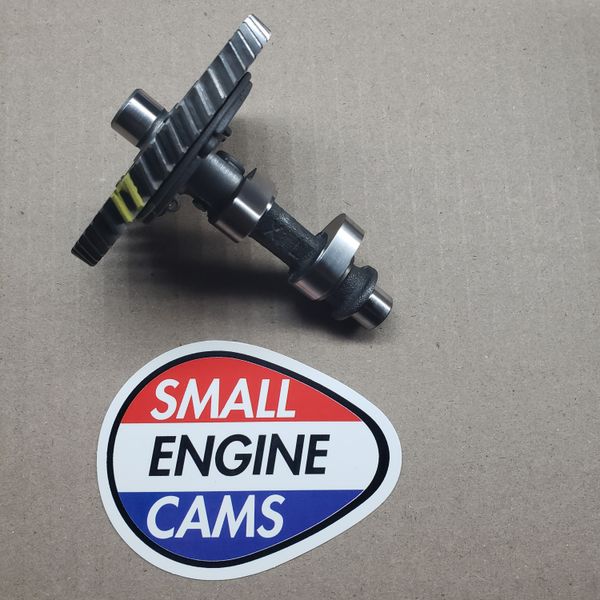

BLACK MAMBA CAM (GX390/13 HP CLONE)

.275" LIFT 246 DURATION @ .050" 108 LSA

HARDFACE WELDED!

BLACK MAMBA JR CAM (GX390/13 HP CLONE)

.275" LIFT 230 DURATION @ .050" 104 LSA

HARDFACE WELDED!

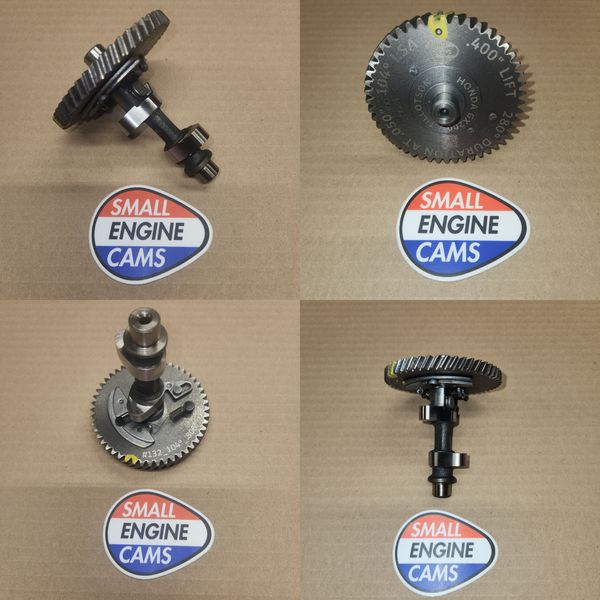

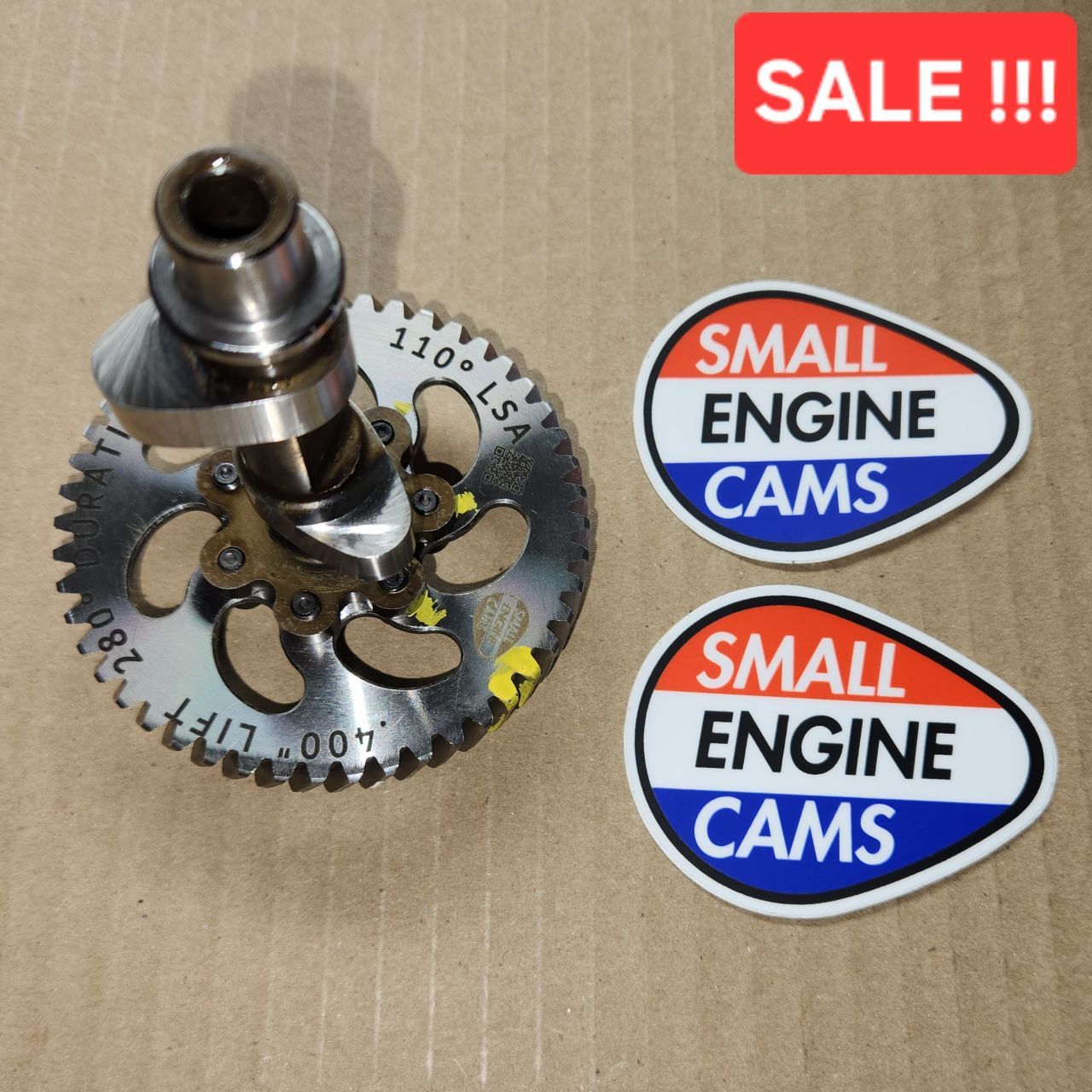

CUSTOM CAM (GX390/13 HP CLONE)

104 LSA = MORE BOTTOM END POWER 108 LSA = BEST ALL-AROUND POWER 110 LSA = MORE TOP END POWER

HARDFACE WELDED! DECAL AND SPEC SHEET INCLUDED

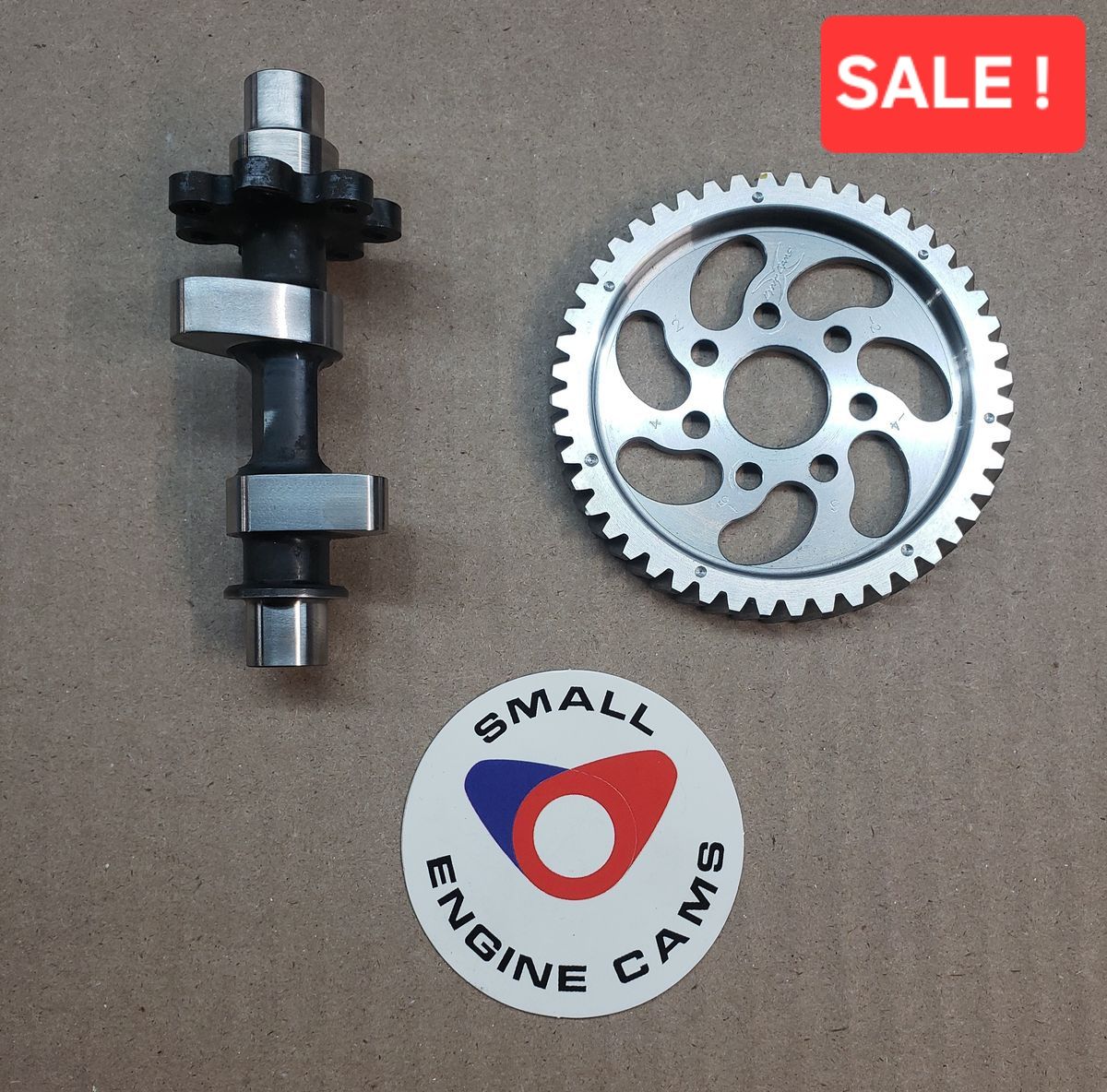

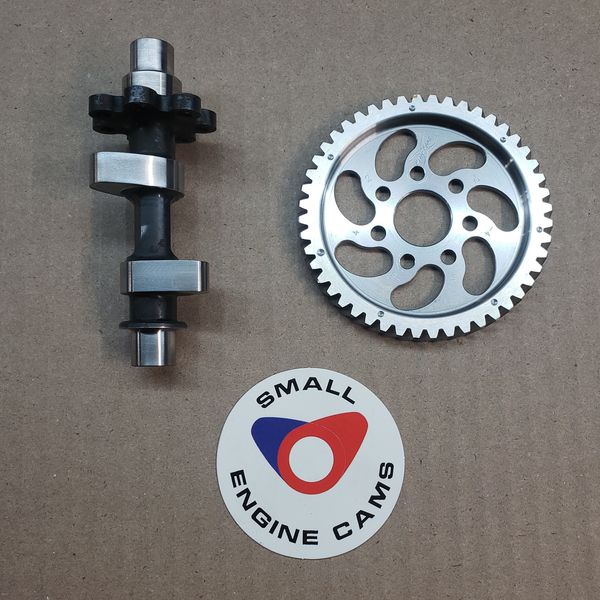

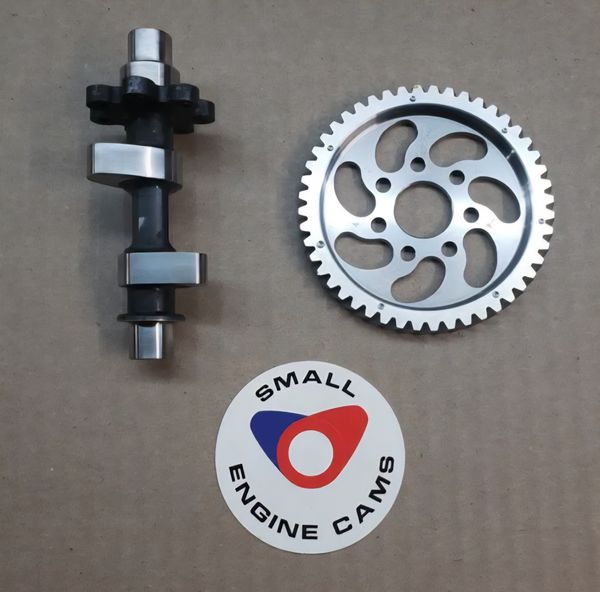

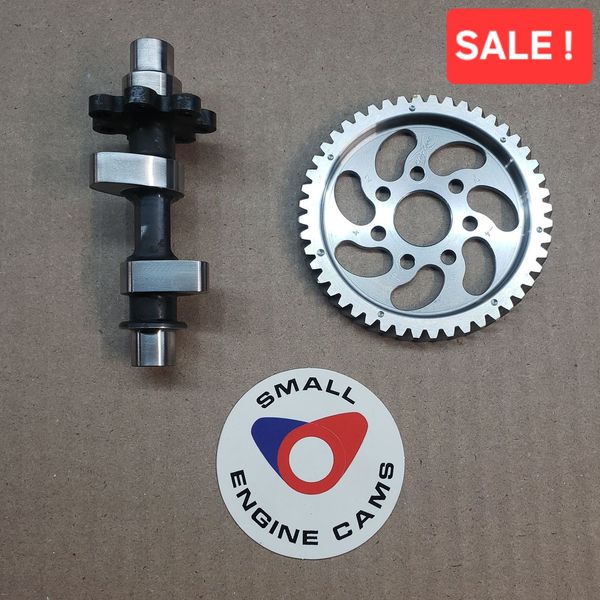

CUSTOM BILLET CAM (GX390/13 HP CLONE)- HEAT TREATED BILLET STEEL CORE- HARDFACE WELDED- ADJUSTABLE GEAR

104 LSA=MORE BOTTOM END, 108 LSA=BEST ALL AROUND, 110 LSA=MORE TOP END

3.303" ROD (GX200/CLONE) STOCK LENGTH INCLUDES BEARINGS AND BOLTS

3.313" ROD (GX200/CLONE) .010" LONGER THAN STOCK INCLUDES BEARINGS AND BOLTS

3.323" ROD (GX200/CLONE) .020" LONGER THAN STOCK INCLUDES BEARINGS AND BOLTS

3.595" ROD (GX200/CLONE) FOR WISECO OR ARIAS PISTONS WITH .490" WRISTPIN (NOT FOR STOCK PISTONS) INCLUDES BEARINGS AND BOLTS

ARC 3.707" ROD (GX200/CLONE)

3.625" STROKER ROD (GX200/CLONE)

3.525" STROKER ROD (GX200/CLONE)

3.308" ROD (PREDATOR)

3.328" ROD (PREDATOR)

3.348" ROD (PREDATOR)

3.707" ROD (PREDATOR) FOR WISECO OR ARIAS PISTONS WITH .490" WRISTPIN (NOT FOR STOCK PISTONS) INCLUDES BEARINGS AND BOLTS

3.595" ROD (PREDATOR) FOR WISECO OR ARIAS PISTONS WITH .490" WRISTPIN (NOT FOR STOCK PISTONS) INCLUDES BEARINGS AND BOLTS

ROD BEARINGS #6394 (GX200/CLONE)

STROKER ROD BEARINGS #6392 (GX200/CLONE)

ROD BEARINGS #6292 (PREDATOR)

ROD BOLTS #6383

FLAT TOP PISTON KIT (PREDATOR) STOCK BORE PISTON, RINGS, WRISTPIN, AND LOCKS

 STOCK WRISTPIN AND TWO CIRCLIPS

HEAVY DUTY .490" WRISTPIN STRONGEST AVAILABLE! FITS ARIAS PISTONS AS IS. ALSO FITS WISECO PISTONS WHEN SHORTENED

SNAP RING FOR .490" WRISTPIN

STROKER CRANK SUPERALLOY (GX200/CLONE/PREDATOR) (+.175" STROKE)

EC 263CC STROKER KIT - 76MM BORE X 58MM STROKE - COMES WITH CRANK, ROD, AND PISTON KIT

EC 236CC STROKER KIT - 72MM BORE X 58MM STROKE - COMES WITH CRANK, ROD, AND PISTON KIT

CLONE CRANKSHAFT (196CC)

CRANK SHIM KIT• TWO .1MM SHIMS AND TWO .2MM SHIMS

STOCK FLYWHEEL KEY (GX200/CLONE/PREDATOR) FITS STOCK CRANK DOES NOT FIT STROKER CRANK!

CRANK BEARING

CRANK SEAL

OFFSET TIMING KEY (GX200/CLONE/PREDATOR) FITS STOCK CRANK DOES NOT FIT STROKER CRANK!

STROKER FLYWHEEL KEY FITS ARC STROKER CRANK

DOES NOT FIT STOCK CRANK!

STROKER OFFSET 8 DEGREE KEY

BLOWER HOUSING (RED)

CLONE RECOIL STARTER (RED)

BLOWER COVER PLATE

BOLT FOR RECOIL STARTER (1 BOLT)

BOLT FOR BLOWER HOUSING (1 BOLT)

CLONE FLYWHEEL NUT

CLONE STARTER CUP

BILLET STARTER NUT SHORT (GX200/CLONE/PREDATOR)

BILLET STARTER NUT LONG (GX200/CLONE/PREDATOR) 66.5 MM LONG

BILLET VALVE COVER - WITH HARDWARE AND FITTINGS

BILLET VALVE COVER SPACER - WITH HARDWARE AND FITTINGS - O-RINGED TOP AND BOTTOM

CLONE VALVE COVER (GX200/CLONE)

MOFLOW BILLET HEAD - SUPPORTS .500" VALVE LIFT WITH NO MODIFICATION - 32MM INTAKE VALVE - 25MM EXHAUST VALVE - DUAL VALVE SPRINGS - TITANIUM RETAINERS

MOFLOW MANIFOLD - HOSE MOUNT - 35MM O.D.

EVO HEAD - 33MM / 27MM VALVES - WITH DUAL SPRINGS

TILLOTSON 70MM BORE RACING BLOCK WITH TANK MOUNTS

TILLOTSON 72MM BORE RACING BLOCK - NO TANK MOUNTS

CYLINDER SLEEVE FOR 3" PISTONS 2.883" INSIDE DIAMETER 3.1035" OUTSIDE DIAMETER 6.500" LENGTH

CRANK SHIM KIT• TWO .1MM SHIMS AND TWO .2MM SHIMS•

SIDECOVER O-RING PART# 6052C FITS ARC BILLET SIDECOVERS

BILLET SIDECOVER (GX200/CLONE/HEMI) COMPLETE WITH GASKET, SEALS, AND HARDWARE

BILLET SIDECOVER (PREDATOR NON-HEMI) INCLUDES GASKET, SEALS, AND HARDWARE

TOP PLATE (SELECT ENGINE)

FUEL PUMP MOUNT - (BWF) FOR TILLOTSON BLOCKS WITHOUT TANK EARS

CRANK SEAL (GX200/CLONE/PREDATOR)

CARB TO INTAKE GASKET

INTAKE GASKET

EXHAUST GASKET (GX200/CLONE)

SIDE COVER GASKET (GX200/CLONE/HEMI)

SIDE COVER GASKET (PREDATOR NON-HEMI)

VALVE COVER GASKET (GX200/CLONE)

VALVE COVER GASKET (HEMI)

MLS HEAD GASKET (GX200/CLONE) STOCK BORE CHOOSE THICKNESS VITON COATED STAINLESS STEEL

RUBBER VALVECOVER GASKET (GX200/CLONE)

COMETIC FIBER VALVE COVER GASKET .047" THICK

STEEL HEAD GASKET (GX200/CLONE) .010" THICK

FIBER FIRE RING HEAD GASKET (PREDATOR NON-HEMI) .045" THICK

COMETIC FIRE RING HEAD GASKET (GX200/CLONE) .043" THICK THE BEST SEALING HEAD GASKET BAR NONE!

FIBER FIRE RING HEAD GASKET (GX200/CLONE) .048" THICK

STEEL HEAD GASKET (PREDATOR NON-HEMI) .010" THICK

MLS HEAD GASKET (PREDATOR) STOCK BORE SELECT THICKNESS VITON COATED STAINLESS STEEL

SIDECOVER O-RING PART# 6052C FITS ARC BILLET SIDECOVERS

COPPER HEAD GASKET GX200/CLONE - .042" THICK

COPPER EXHAUST GASKET .042" THICK

SOLID DOWEL PIN (GX200/CLONE)

HEAD STUD KIT (GX200/CLONE/PREDATOR) TORQUE SPECS: 200-220 INCH LBS.

SIDE COVER STUD KIT (GX200/CLONE/PREDATOR) TORQUE SPECS: 200-220 INCH LBS.

BOLT KIT: ENGINE TO MINIBIKE FRAME - 4 BOLTS, 8 WASHERS, 4 LOCK WASHERS, 4 NUTS - GRADE 8!!!

BOLT KIT: MANIFOLD TO HEAD (2 BOLTS)

BOLT KIT: CARBURETOR TO MANIFOLD (2 BOLTS, 2 LOCKNUTS)

BOLT KIT: CARBURETOR BOWL SCREWS• 4 SCREWS• FITS 22MM MIKUNI• UPGRADED! THE STOCK PHILLIPS HEAD SCREWS STRIP EASILY. THESE DO NOT!

BOLT KIT: COIL BOLTS: (2 BOLTS)

EXHAUST BOLT KIT

OIL CATCH CAN

BRACKET FOR CATCH CAN - FITS 7/8" MINIBIKE FRAMES

VELOCITY STACK FOR 28MM PWK CARBURETOR

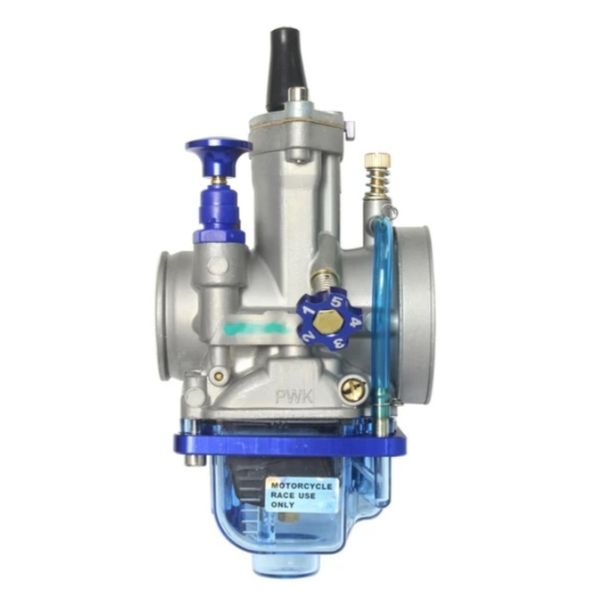

PWK 28MM FLATSLIDE CARBURETOR

BOOT ADAPTER FOR 28MM PWK CARBURETOR - INCLUDES MOUNTING BOLTS - ADAPTS 28MM PWK CARBURETOR TO 22MM MIKUNI MANIFOLD

MANIFOLD WITH BOOT FOR PWK CARBURETOR• INCLUDES HARDWARE AND GASKET

PZ 27 CARBURETOR

 22MM MIKUNI CARBURETOR
NORMALLY COMES WITH #95 MAIN JET AND #15 PILOT JET
SEE OUR SELECTION OF MAIN AND PILOT JETS BELOW


AIR FILTER FOR MIKUNI OR PZ27 CARBURETOR

MANIFOLD FOR PZ 27 OR 22 MIKUNI CARBURETOR• INCLUDES MOUNTING HARDWARE

TILLOTSON CAP, GASKET, AND SCREW

MAIN JET FOR 22MM MIKUNI

PILOT JET FOR 22MM MIKUNI

CABLE END NIPPLE SOLDER THIS TO THE END OF YOUR THROTTLE CABLE FOR 22MM MIKUNI OR PZ27 CARBURETORS

MIKUNI FUEL PUMP

FUEL PUMP

FUEL SHUTOFF VALVE 1/4"

FUEL FILTER

UNI FILTER SPRAY OIL
5.5 OZ

UNI FILTER SPRAY CLEANER
14.5 OZ

PIPE PLUG: 1/8" NPT WITH THREAD SEALANT

VALVE COVER GROMMET
